HWL-2511-SS
Industrial LTE Router and Wi-Fi Access Point

Product Features

The HWL-2511-SS is an industrial LTE router that can be used for remote data transmission such as collecting sensor data and checking surveillance camera images.
It can be used as an LTE communication gateway for M2M applications.
It has a VPN function and is ideal for building a remote office network. (Refer to the following on this page for the measured speed of the VPN network.)

It can also be used for BCP (Business Continuity Plan) measures.
Since it can also be used as a 2.4GHz band Wi-Fi access point, it is possible to check data on site.

– Wide operating temperature from -20 to + 60℃
– 2.4GHz band Wi-Fi function installed
– Equipped with RS-232 / 485, DI / DO port
– Lightweight, small housing
Security can be ensured because camera access can be restricted only to registered clients.
– Supports frequency Band 41
– GPS antenna
Acquire location informatio
GPS time server function

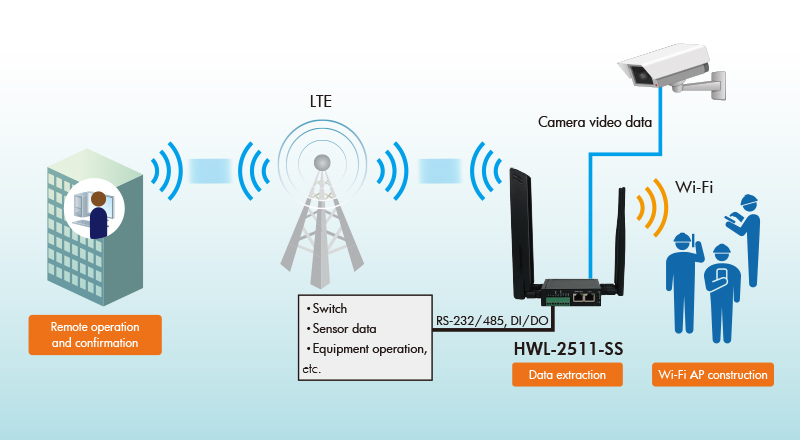

Precise time information received by GPS can be distributed as an SNTP server to NTP / SNTP compatible network devices.Connection configuration example

Usage example

Want to monitor information such as water quality, geology, and temperature at a remote location

Problem

– Want to monitor data from sensors such as water quality, geology, and temperature installed at the site at a remote location.
– Environmentally difficult to wire cables.

With the industrial LTE router “HWL-2511-SS” equipped with Wi-Fi access point function, sensor data is collected by Wi-Fi and data is transmitted to the cloud via LTE.

– Usage scene
Environmental sensor data collection and transmission on farms.
Collection and transmission of various sensor data in factories.
Collection and transmission of sensor data in solar power generation facilities.

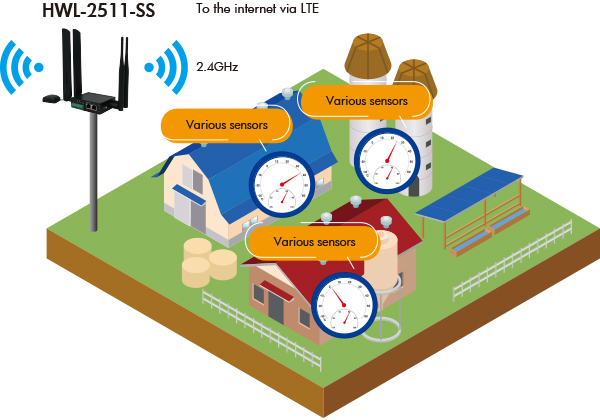

Connection configuration example

Case study at a farm in Hokkaido

Collect data from various sensors via Wi-Fi using HWL-2511-SS and check the data at a remote location via LTE.
With attached GPS antenna, it can synchronize the time of various sensors as an NTP server!

Build a Wi-Fi environment in a logging work area without a network environment.

– Build an outdoor Wi-Fi environment in the 2.4GHz and 5GHz bands with the E500 Wi-Fi AP that conforms to IP67 and has excellent environmental resistance.
– Access the E500 Wi-Fi AP installed in the mobile phone deadzone by combining the outdoor telephone line, the coaxial cable compatible PoE extension device ABiLINX 3101T / R and Industrial LTE router HWL-2511-SS. Wi-Fi can be used as a access point.

(* ABiLINX 3101T / R and HWL-2511-SS must be housed in a waterproof box)

Build a Wi-Fi environment in a logging work area without a network environment.

Assuming that the summit is outside the LTE cover area and the foot of the mountain is inside the LTE cover area. A communication network was constructed by laying an outdoor telephone line from the foot of the mountain to the summit. Since power can be supplied to the ABiLINX 3101R side, no power supply is required on the mountaintop.

If you have one E500, you can use it with a telephone line length of about 1000 to 1500m.

(VPN network speed using 2 units HWL-2511-SS Measured value)

Conditions

ISAKMP policy Tunnel policy
Authentication method PSK Authentication algorithm SHA256
Version IKE2 Cryptographic algorithm AES256
Authentication algorithm SHA256 DH group 5(1536bit)
Cryptographic algorithm AES256
DH group 5(1536bit)

1. HWL-2511-SS(DoCoMo)―――HWL-2511-SS(DoCoMo)

Traffic direction iPerf
2511#1 → 2511#2 4.81Mbps
2511#2 → 2511#1 5.12Mbps

2. hEX S(Optical)―――HWL-2511-SS(DoCoMo)

Traffic direction iPerf
hEX S → 2511 8.04Mbps
2511 → hEX S 2.49Mbps

3. hEX S(Optical)―――hEX PoE(Optical)

Traffic direction iPerf
hEX S → hEX PoE 7.37Mbps
hEX PoE → hEX S 27.6Mbps

4. hEX S(Optical)―――hEX PoE(Optical):When encryption is set to AES128

Traffic direction iPerf
hEX S → hEX PoE 7.81Mbps
hEX PoE → hEX S 32.8Mbps

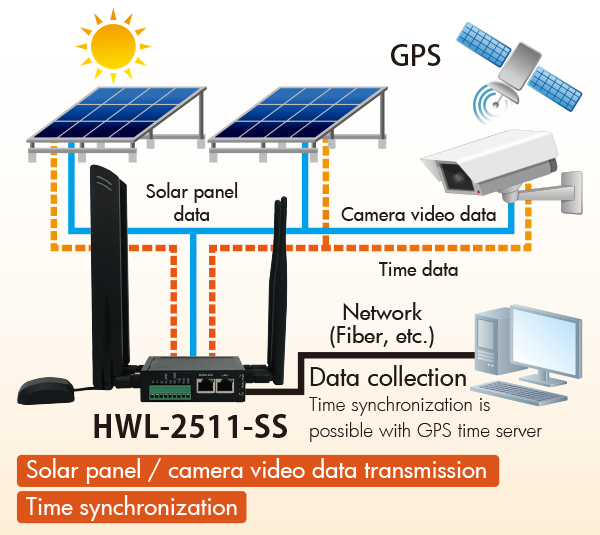

Introduction example

– Factory
– Tunnel
– Construction site
– Solar facility

Introduction example

The perfect solution for these customers

– Security
– Factory
– Airport
– Railway
– Highway

Product Specifications

Product name HWL-2511-SS
Product code 189-HY-004
Corresponding band FDD LTE : B1/B3/B8/B18/B19/B26
TDD LTE : B41
WCDMA : B1/B6/B8/B19
Corresponding carrier Only compatible with NTT Docomo
Category LTE Cat4
Wi-Fi (2.4GHz) 802.11b,g,n
Interface 1xSIM Card Slot
1xLAN 10/100 Mbps Ethernet port
1xWAN 10/100 Mbps Ethernet port
2xRPSMA connector (Wi-Fi 2.4GHz)
2xSMA connector (LTE antenna)
1xGPS antenna
1xRS-232c (TXD/RXD)
1xDI, 1xDO
VPN
Number of tunnels
IPsec 4
L2TP※1 2
OPENVPN 4
Number of WiFi clients 50
Compatible SIM card Micro SIM
Antenna part External LTE : Main/AUX, Wi-Fi : MIMO , GPS
LED display Power, FN, RSSI (H/L) : All green
Power supply AC100V (When using the AC adapter )
DC10~32V
Power consumption 7W (Maximum)
Operating temperature -20~+60℃
Size (W) 91 x (H) 74 x (D) 28 mm
Weight 250g or less
Certification Construction design certification number/TELECCertification number : 210-134066
Technical standard conformity certification number : ADF18-0088018
VCCI Class A
Accessories antenna x4
GPS antenna for LTE router (cable length 2m) x 1
DIN rail kit x1
AC adapter x 1 pcs
* The attached antenna is for indoor use.
If you want to use the antenna outdoors, please use the optional waterproof antenna.

* 1) This product is compatible with L2TP version 2.

Optional product
DC adapter with UPS (uninterruptible power supply) function
Product code Product name
165-PB-002 DC adapter with UPS (uninterruptible power supply) function OS12-5200
Outdoor LTE antenna
Product code Product name
182-ST-001 Outdoor LTE antennas (L type) 2 sets
182-ST-002 Outdoor LTE antennas (straight type) 2 sets
183-HY-001 Outdoor cable for LTE antenna 0.3m
183-HY-002 Outdoor cable for LTE antenna 0.5m
187-NA01-0001 Outdoor LTE antenna mounting bracket 2 sets
LTE flat-rate data communication service (For cameras / recorders)
291-HY-003 Unlimited upload 100kbps plan
291-HY-002 Unlimited upload 256kbps plan
291-HY-004 Unlimited upload 1Mbps plan

* A separate [Communication plan initial administration fee (camera / recorder plan)] will be charged.

LTE flat-rate data communication service (for remote work)
291-HY-005 LTE flat-rate 10GB plan for remote work
291-HY-006 LTE flat-rate 20GB plan for remote work
291-HY-007 LTE flat-rate 30GB plan for remote work

* Separately, [Communication plan initial administration fee (plan for remote work)] will be charged.

Product name Product code
LTE loopback communication option 291-HY-010

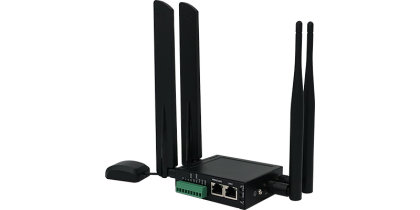

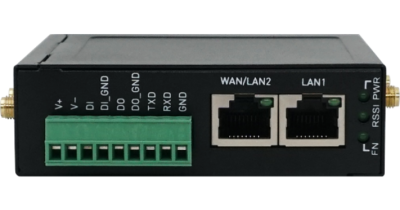

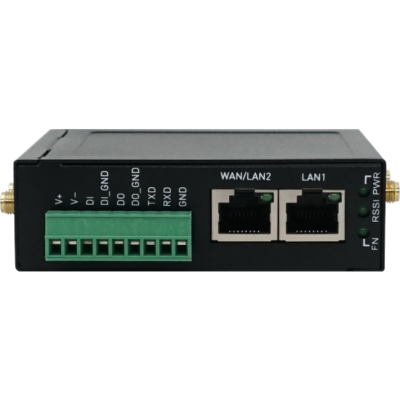

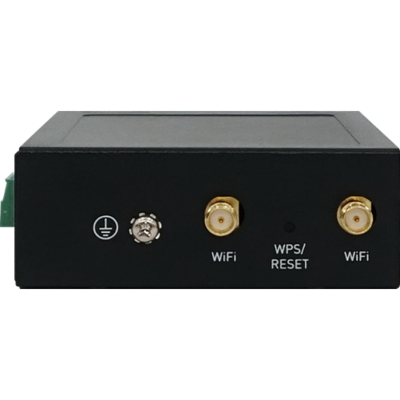

Product appearance

SPEC

– Supports a wide operating temperature of -20 to + 60℃.

– With GPS Time Server function .

– Digital I / O can be turned on and off remotely,
